500kg Copper Iron Steel Induction Melting Machine Foundry Electric Smelting Furnace

aluminum shell Foundry Electric Aluminum Copper/Brass/Bronze/Steel/Iron Induction Melting Smelting Furnace

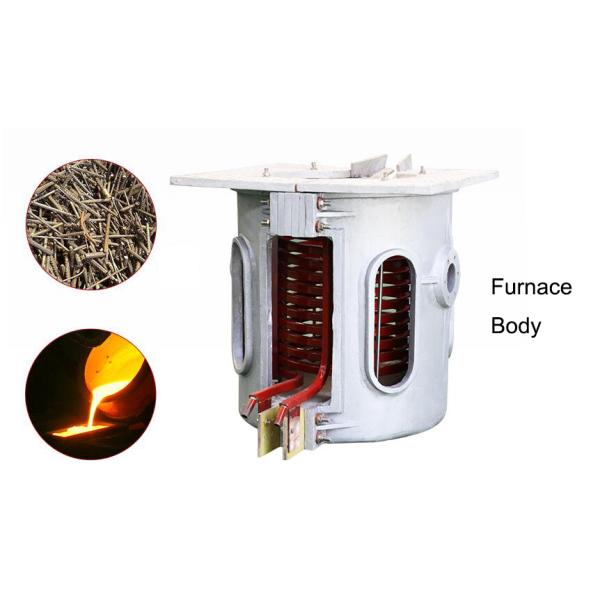

1. Furnace body of Medium Frequency Induction Melting Furnace:

The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.The thick T2 standard copper tube is taken use for induction coil.

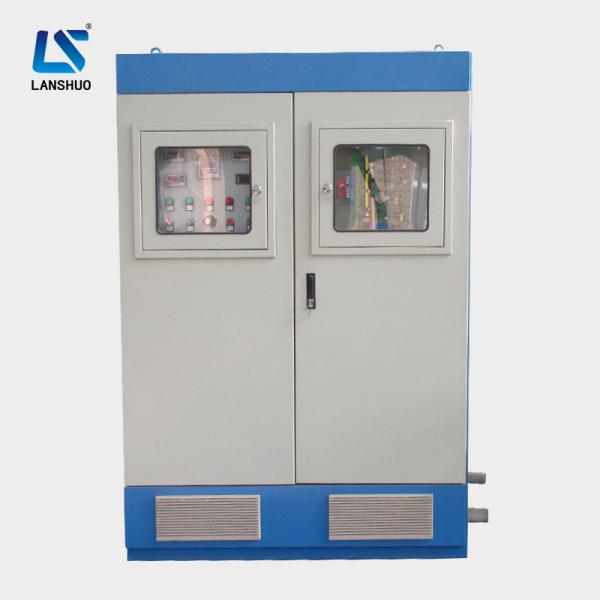

2. Control Cabinet of melting furnace:

The main control board is microcomputer control, one - key zero - pressure start. The separate insolation design of water pressure meter can make the user convenient and intuitive to monitor the water pressure

3. The double-layer mica insulation technology is used for the insulation treatment of the capacitor. Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.

4.Furnace Tilting Reducer is used to control the rotary of the furnace body.
The tilting reducer is equipped with three-stage turbine speed. With good self-locking and stable rotary performance.

2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

aluminum shell medium frequency melting furnace required little area, which is easy to operate, easy to use, and inexpensive, suitable for melting all kinds of pig iron, cast iron, scrap, iron slag, etc.

4. Part of the aluiminum shell induction melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

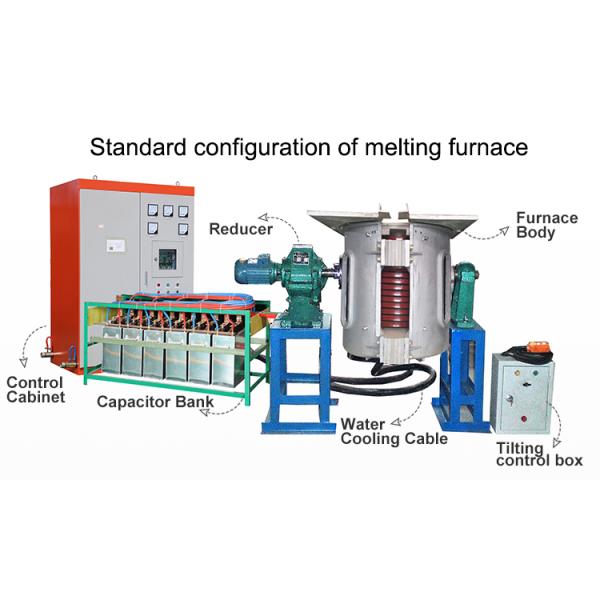

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil

5. Large Induction Melting Furnace Advantage:

Standard features of induction melting furnace:
Open furnace structure. The basic structure: with unique shock absorber and solid magnetic yoke, two cylinder with thick wall seamless rectangular steel tube is welded into one structure, being safer, firm, durable, high efficient. The upper end of the induction furnace can be disassembled to facilitate the replacement of the coil.
Hydraulic tilting. Furnace can rotate around the pouring spout, and tilting with proportional control, through controlling buttons of hydraulic station and the handle of tilting control device . Its tilting angle is vertically at 95 degrees and it can stay in any position in the process of rotating, as well as to change titling speed to more quicker or more slowly. It uses the manual valve operation and double machine double pump, with remote manual control system. Some other company only have single pump control.
Magnetic yoke. The sensor is enclosed with a magnetic yoke, covering an area is over 65%, so the leakage is small and achieve the maximum electrical efficiency. Compared with aluminum shell furnaces, steel shell furnace can save nearly 5% power consumption.
Anti-fall protection device (for more than 2 ton capacity). During the process of tilting furnace, the anti-falling protective hood will be automatically raised to form a protective barrier to prevent the personnel from falling.
Factory test.

Iron Steel Induction Melting Machine

500kg Induction Melting Machine

500kg Foundry Electric Smelting Furnace

500kg Copper Iron Steel Induction Melting Machine Foundry Electric Smelting Furnace Images
